ISO9809-1
34CrMo4
103.5mm
2.3L-4.5L
166.7-174bar
250bar
Concave/convex
PED/TPED
| Quantity: | |
|---|---|

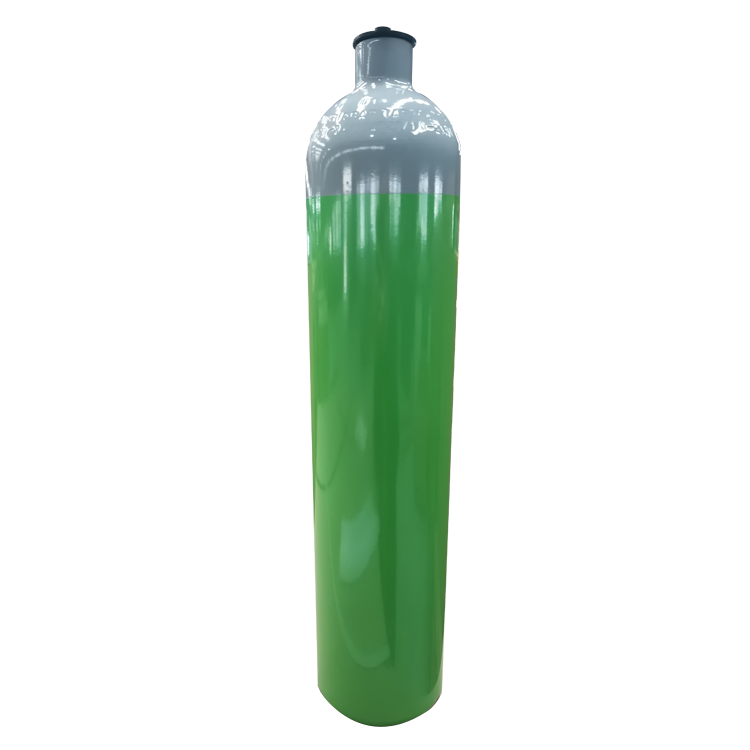

ISO 9809-1 Seamless Steel Gas Cylinder
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 103.5-2.3-250 | 103.5 | 174（PED）166.11（TPED） | 250 | 34CrMo4 | 2.0 | 2.3 | 380 | 3.1 | PED TPED |
| 103.5-3.0-250 | 103.5 | 174（PED）166.10（TPED） | 250 | 34CrMo4 | 2.0 | 3.0 | 475 | 3.8 | PED TPED |
| 103.5-4.5-250 | 103.5 | 174（PED）166.9（TPED） | 250 | 34CrMo4 | 2.0 | 4.5 | 670 | 5.3 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
ISO 9809-1 Seamless Steel Gas Cylinder
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 103.5-2.3-250 | 103.5 | 174（PED）166.11（TPED） | 250 | 34CrMo4 | 2.0 | 2.3 | 380 | 3.1 | PED TPED |
| 103.5-3.0-250 | 103.5 | 174（PED）166.10（TPED） | 250 | 34CrMo4 | 2.0 | 3.0 | 475 | 3.8 | PED TPED |
| 103.5-4.5-250 | 103.5 | 174（PED）166.9（TPED） | 250 | 34CrMo4 | 2.0 | 4.5 | 670 | 5.3 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
