Medical gas cylinders are all manufactured according to ISO 7866 design standard and 2010/35/EU (TPED) directive.

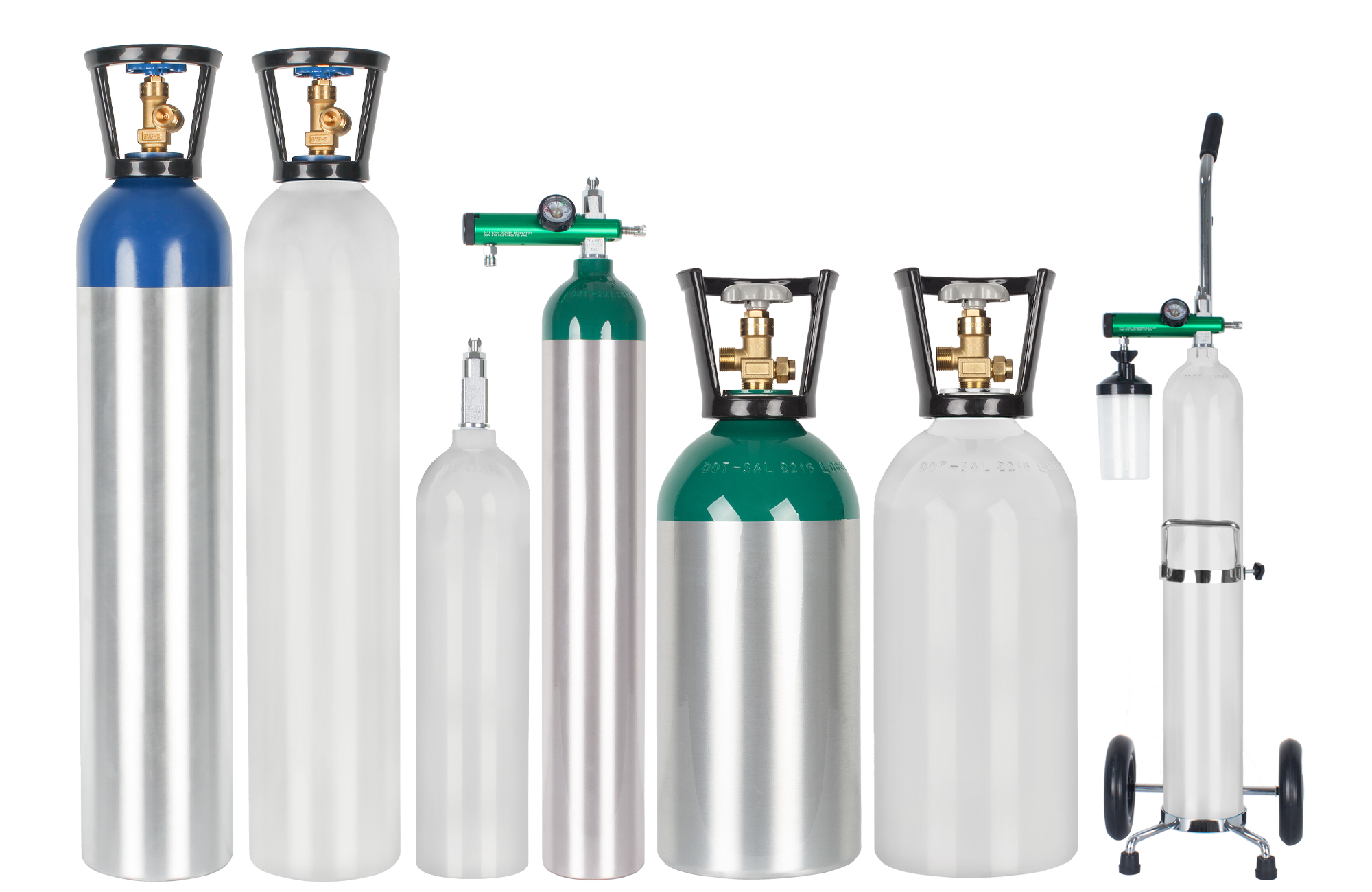

The aluminium alloy medical gas cylinders offer noteworthy advantages such as being lightweight, corrosion-resistant and non-magnetic.

ISO 7866 standrd
ISO 7866 standrd
ISO 7866 Seamless Aluminum Alloy Gas Cylinder
No.	Type	Outside diameter (mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
No.	Type	Outside diameter (mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	111-1.0-310.5	111	207	310.5	AA6061	H	7.59	1.0	220	2.1	TPED
2	111-2.0-310.5							2.0	360	3.1
3	111-2.5-310.5							2.5	430	3.6
4	111-3.0-310.5							3.0	500	4.1
5	111-3.5-310.5							3.5	570	4.6
6	111-4.0-310.5							4.0	640	5.0
7	152-4.0-310.5	152	207	310.5	AA6061	H	10.39	4.0	400	6.3	TPED
8	152-5.0-310.5							5.0	475	7.3
9	152-6.0-310.5							6.0	550	8.2
10	152-7.0-310.5							7.0	625	9.2
11	152-8.0-310.5							8.0	700	10.2
12	152-10.0-310.5							10.0	850	12.2
13	185-5.0-310.5	185	207	310.5	AA6061	H	12.64	5.0	355	8.5	TPED
14	185-8.0-310.5							8.0	505	11.3
15	185-11.0-310.5							11.0	655	14.2
16	185-11.1-310.5							11.1	660	14.3
17	185-12.0-310.5							12.0	705	15.2
18	185-15.0-310.5							15.0	855	18.1
19	203-8.0-310.5	203	207	310.5	AA6061	H	13.87	8.0	445	12.5	TPED
20	203-11.0-310.5							11.0	570	15.5
21	203-11.1-310.5							11.1	575	15.6
22	203-12.0-310.5							12.0	615	16.5
23	203-15.0-310.5							15.0	740	19.4
24	203-18.0-310.5							18.0	870	22.4
