Beverage
The cylinders are manufactured in accordance with ISO 7866 design standard and 2010/35/EU (TPED) directive.
Aluminium alloy high pressure CO2 cylinders are all tested for hydrocarbon rate.
They are clean inside and healthy, thus ideal for carbonating drinks. Also available in various decorative surface finishes

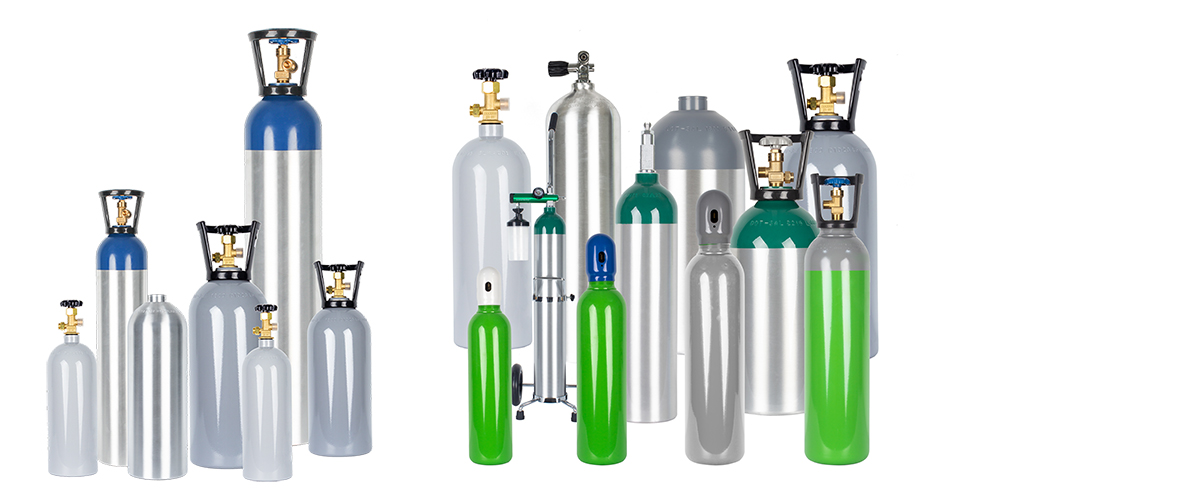

beverage-cylinder

ISO 7866 standard

ISO 7866 Seamless Aluminum Alloy Gas Cylinder
 No. Type Outside diameter(mm) Working pressure (Bar) Test
 pressure (Bar)		 Material Bottom Type Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg) Certificate
1 111-1.7-250 111 166.7 250 AA6061 H 6.02  1.7  301 2.1 TPED
2 111-2.0-250 2.0  340 2.5
3 111-2.5-250 2.5  405 2.9
4 111-3.0-250 3.0  475 3.3
5 111-3.5-250 3.5  545 3.7
6 111-4.0-250 4.0  610 4.1
7 111-4.5-250 4.5  680 4.5
8 117-2.0-250 117 166.7 250 AA6061 H 6.34  2.0  320 2.6 TPED
9 117-2.5-250 2.5  380 3.0
10 117-2.67-250   404 3.2
11 117-3.0-250 3.0  440 3.4
12 117-3.5-250 3.5  500 3.8
13 117-4.0-250 4.0  560 4.2
14 117-4.5-250 4.5  620 4.5
15 140-3.0-250 140 166.7 250 AA6061 H 7.59  3.0  335 4.1 TPED
16 140-4.0-250 4.0  420 4.9
17 140-5.0-250 5.0  505 5.7
18 140-6.0-250 6.0  590 6.5
19 140-6.5-250 6.5  635 6.9
20 140-7.0-250 7.0  675 7.3
21 152-5.0-250 152 166.7 250 AA6061 H 8.24  5.0  450 6.1 TPED
22 152-6.0-250 6.0  520 6.9
23 152-6.7-250 6.7  570 7.4
24 152-7.5-250 7.5  630 8.0
25 152-8.0-250 8.0  665 8.4
26 152-10.0-250 10.0  810 10.1
27 159-5.0-250 159 166.7 250 AA6061 H 8.62  5.0  415 6.2 TPED
28 159-6.0-250 6.0  480 6.9
29 159-7.0-250 7.0  545 7.6
30 159-7.5-250 7.5  580 8.0
31 159-8.0-250 8.0  615 8.5
32 159-10.0-250 10.0  745 10.0
33 203-8.0-250 203 166.7 250 AA6061 H 11.0  8.0  420 10.5 TPED
34 203-10.0-250 10.0  500 11.9
35 203-12.0-250 12.0  580 13.4
36 203-13.4-250 13.4  635 14.3
37 203-15.0-250 15.0  700 15.5
38 203-20.0-250 20.0  905 19.5

ISO 9809-1 standard

ISO 9809-1 Seamless Steel Gas Cylinder
No. Type Outside diameter(mm) Working pressure (Bar) Test
 pressure (Bar)		 Material Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg) Certificate
1 103.5-2.3-250 103.5 174
（PED）
166.7（TPED）		 250 34CrMo4 2.0  2.3 380 3.1 PED

TPED
2 103.5-3.0-250 3.0  475 3.8
3 103.5-4.5-250 4.5 670 5.3
7 116-3.0-250 116 174
（PED）
166.7 （TPED）		 250 34CrMo4 2.18  3.0  380 3.9 PED

TPED
8 116-5.0-250 5.0  600 5.6
9 116-7.5-250 7.5  860 7.6
13 136-4.5-250 136 174
（PED）
166.7（TPED）		 250 34CrMo4 2.56  4.5 425 5.4 PED

TPED
14 136-6.0-250 6.0  540 6.6
15 136-7.5-250 7.5  655 7.8
16 136-9.0-250 9.0  770 9.1
21 154-4.5-250 154 174
（PED）
166.7（TPED）		 250 34CrMo4 2.89  4.5 350 5.9  PED

TPED
22 154-7.5-250 7.5  530 8.1
23 154-10.0-250 10.0  675 9.9
