ISO7866
AA6061
111mm
2L-4.5L
166.7bar
250bar
H
TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 111-2.0-250 | 111 | 166.7 | 250 | AA6061 | H | 6.02 | 2.0 | 340 | 2.5 | TPED |
| 111-2.5-250 | 2.5 | 405 | 2.9 | |||||||
| 111-3.0-250 | 3.0 | 475 | 3.3 | |||||||
| 111-3.5-250 | 3.5 | 545 | 3.7 | |||||||
| 111-4.0-250 | 4.0 | 610 | 4.1 | |||||||
| 111-4.5-250 | 4.5 | 680 | 4.5 |

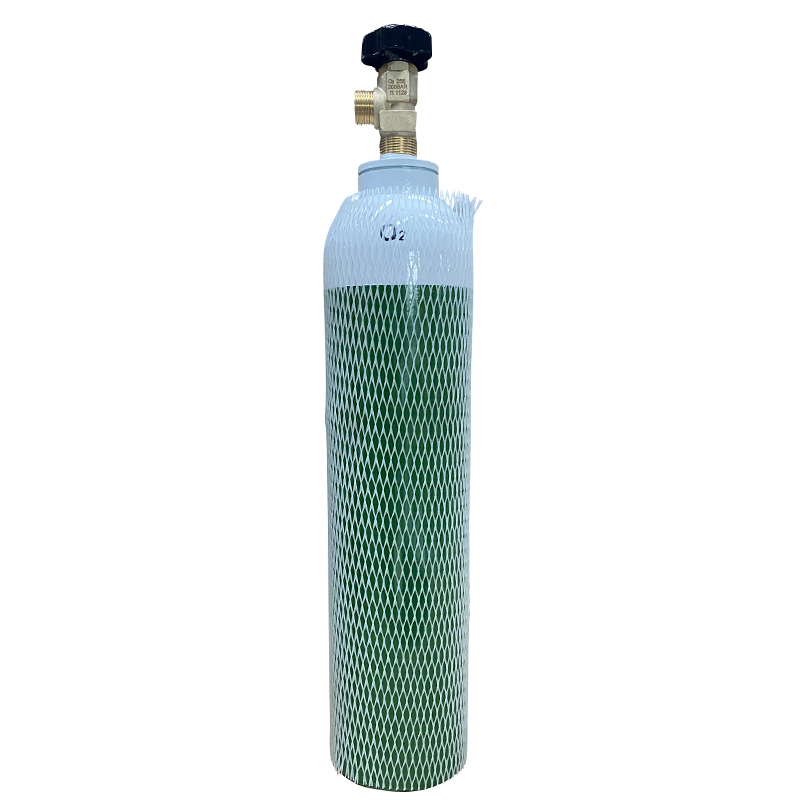

Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 111-2.0-250 | 111 | 166.7 | 250 | AA6061 | H | 6.02 | 2.0 | 340 | 2.5 | TPED |
| 111-2.5-250 | 2.5 | 405 | 2.9 | |||||||
| 111-3.0-250 | 3.0 | 475 | 3.3 | |||||||
| 111-3.5-250 | 3.5 | 545 | 3.7 | |||||||
| 111-4.0-250 | 4.0 | 610 | 4.1 | |||||||
| 111-4.5-250 | 4.5 | 680 | 4.5 |
Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
