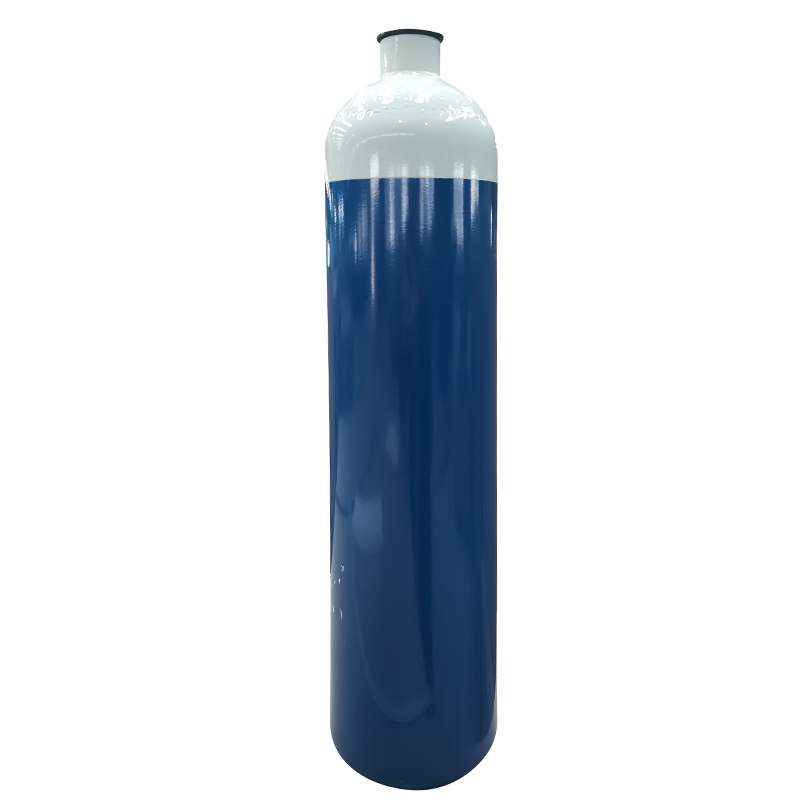

ISO9809-1
34CrMo4
117mm
2.67L-5L
210-216bar
315bar
Concave/convex
PED/TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 117-2.67-315 | 117 | 216（PED）210（TPED） | 315 | 34CrMo4 | 2.78 | 2.67 | 360 | 4.4 | PED TPED |
| 117-5.0-315 | 117 | 216（PED）210（TPED） | 315 | 34CrMo4 | 2.78 | 5.0 | 600 | 6.6 | PED TPED |
| 117-7.5-315 | 117 | 216（PED）210（TPED） | 315 | 34CrMo4 | 2.78 | 7.5 | 860 | 8.9 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
