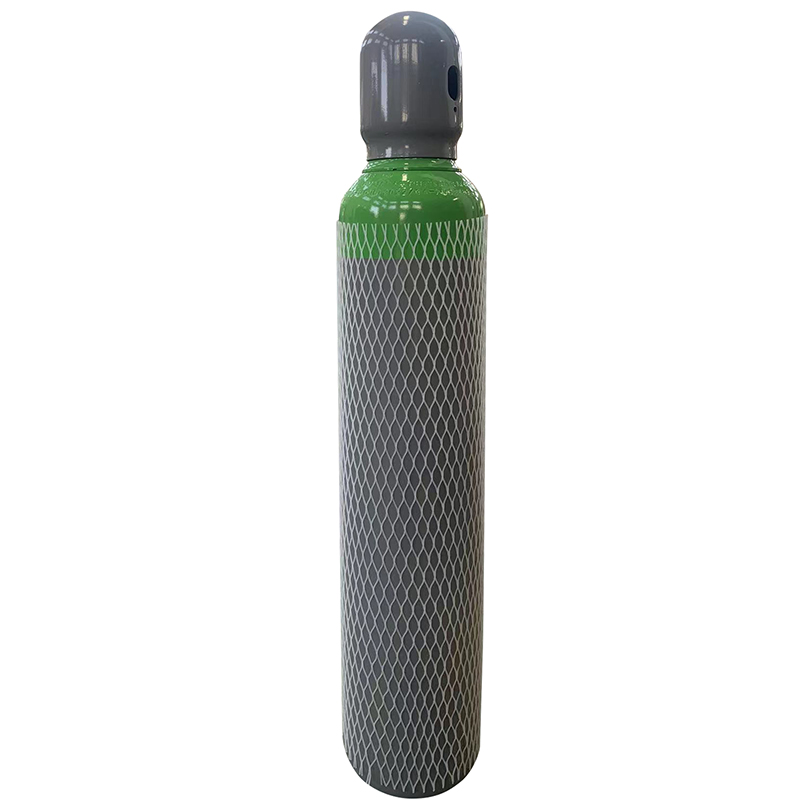

Φ136mm ISO 4.5-9L STEEL CYLINDER

Alloy steel high pressure vessels are widely used in industrial gas storage and transportation，with high safety and refillability

  • ISO9809-1

  • 34CrMo4

  • 136mm

  • 4.5L-9L

  • 166.7-174bar

  • 250bar

  • Concave/convex

  • PED/TPED

Availability:
Quantity:
Inquire Add to Basket

TypeOutside diameter(mm)Working pressure (Bar)Test
pressure (Bar)		MaterialDesign wall thickness(mm)Water Capacity(L)Height (mm)Weight (kg)Certificate
136-4.5-250136174（PED）166.1（TPED）25034CrMo42.564.54255.4PED
TPED
136-6.0-250136174（PED）166.2（TPED）25034CrMo42.566.05406.6PED
TPED
136-7.5-250136174（PED）166.3（TPED）25034CrMo42.567.56557.8PED
TPED
136-9.0-250136174（PED）166.4（TPED）25034CrMo42.569.07709.1PED
TPED

ISO 4.5-9L STEEL CYLINDER Φ136mm
