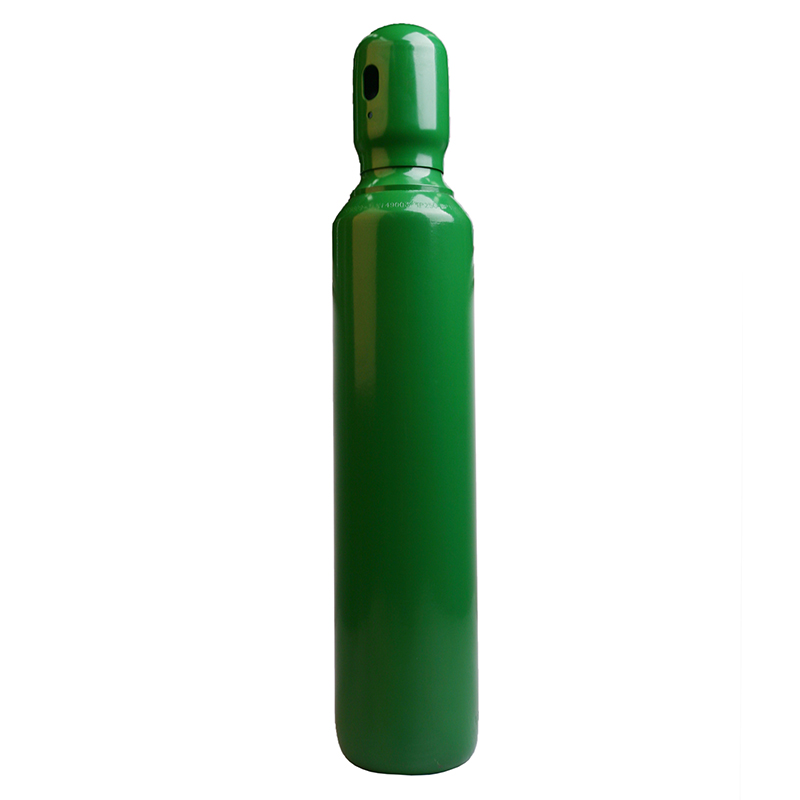

ISO9809-1
34CrMo4
137mm
4L-8L
210-216bar
315bar
Concave/convex
PED/TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 137-4.0-315 | 137 | 174（PED）166.5（TPED） | 315 | 34CrMo4 | 3.26 | 4.0 | 390 | 5.8 | PED TPED |
| 137-5.33-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 5.33 | 490 | 7.1 | PED TPED |
| 137-6.67-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 6.67 | 590 | 8.4 | PED TPED |
| 137-8.0-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 8.0 | 690 | 9.7 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 137-4.0-315 | 137 | 174（PED）166.5（TPED） | 315 | 34CrMo4 | 3.26 | 4.0 | 390 | 5.8 | PED TPED |
| 137-5.33-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 5.33 | 490 | 7.1 | PED TPED |
| 137-6.67-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 6.67 | 590 | 8.4 | PED TPED |
| 137-8.0-315 | 137 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.26 | 8.0 | 690 | 9.7 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
