ISO7866
AA6061
140mm
3L-7L
166.7bar
250bar
H
TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | 认证 Certificate |
| 140-3.0-250 | 140 | 166.7 | 250 | AA6061 | H | 7.59 | 3.0 | 335 | 4.1 | TPED |
| 140-4.0-250 | 4.0 | 420 | 4.9 | |||||||
| 140-5.0-250 | 5.0 | 505 | 5.7 | |||||||
| 140-6.0-250 | 6.0 | 590 | 6.5 | |||||||
| 140-6.5-250 | 6.5 | 635 | 6.9 | |||||||
| 140-7.0-250 | 7.0 | 675 | 7.3 |

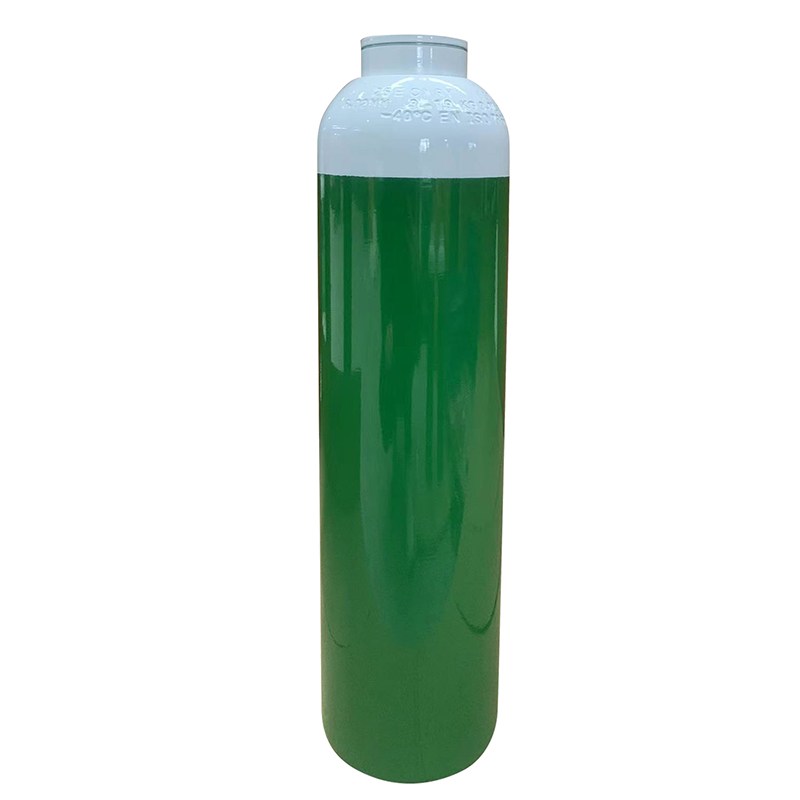

Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | 认证 Certificate |
| 140-3.0-250 | 140 | 166.7 | 250 | AA6061 | H | 7.59 | 3.0 | 335 | 4.1 | TPED |
| 140-4.0-250 | 4.0 | 420 | 4.9 | |||||||
| 140-5.0-250 | 5.0 | 505 | 5.7 | |||||||
| 140-6.0-250 | 6.0 | 590 | 6.5 | |||||||
| 140-6.5-250 | 6.5 | 635 | 6.9 | |||||||
| 140-7.0-250 | 7.0 | 675 | 7.3 |
Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
