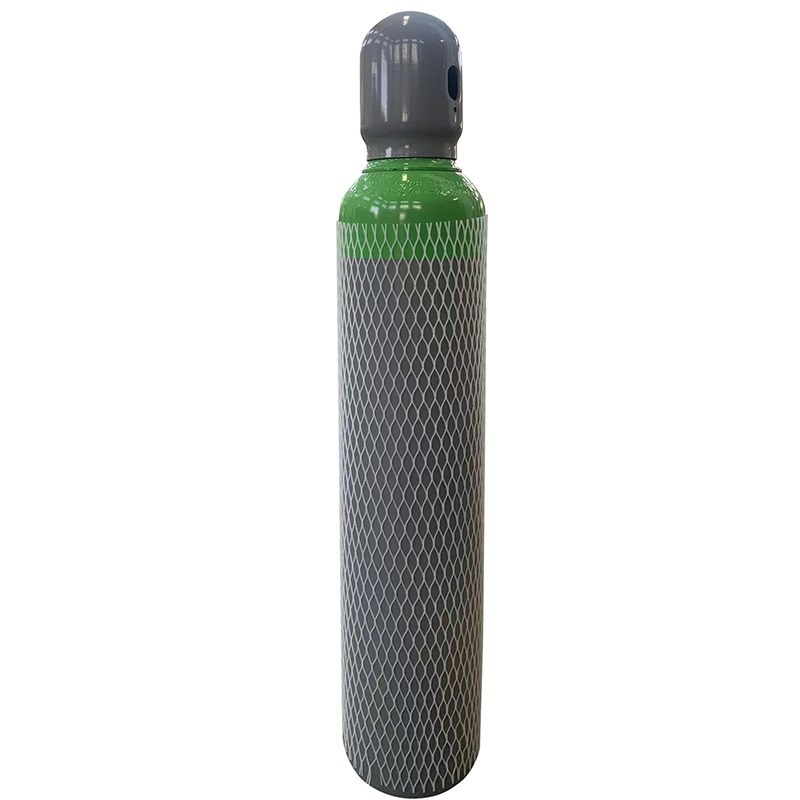

ISO9809-1
34CrMo4
156mm
5L-10L
210-216bar
315bar
Concave/convex
PED/TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 156-4.5-315 | 156 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.71 | 4.0 | 350 | 6.9 | PED TPED |
| 156-6.67-315 | 156 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.71 | 6.67 | 480 | 9.0 | PED TPED |
| 156-10.0-315 | 156 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.71 | 10.0 | 675 | 12.0 | PED TPED |
| 156-15.0-315 | 156 | 216（PED）210（TPED） | 315 | 34CrMo4 | 3.71 | 15.0 | 970 | 16.6 | PED TPED |
Material 34CrMo4 has stronger tensile strength and yield strength, blasting pressure is greater than 400bar. Alloy steel cylinder is more ligher weight than 37Mn and carton steel.
