ISO7866
AA6061
159mm
5L-10L
166.7bar
250bar
H
TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 159-5.0-250 | 159 | 166.7 | 250 | AA6061 | H | 8.62 | 5.0 | 415 | 6.2 | TPED |
| 159-6.0-250 | 6.0 | 480 | 6.9 | |||||||
| 159-7.0-250 | 7.0 | 545 | 7.6 | |||||||
| 159-7.5-250 | 7.5 | 580 | 8.0 | |||||||
| 159-8.0-250 | 8.0 | 615 | 8.5 | |||||||
| 159-10.0-250 | 10.0 | 745 | 10.0 |

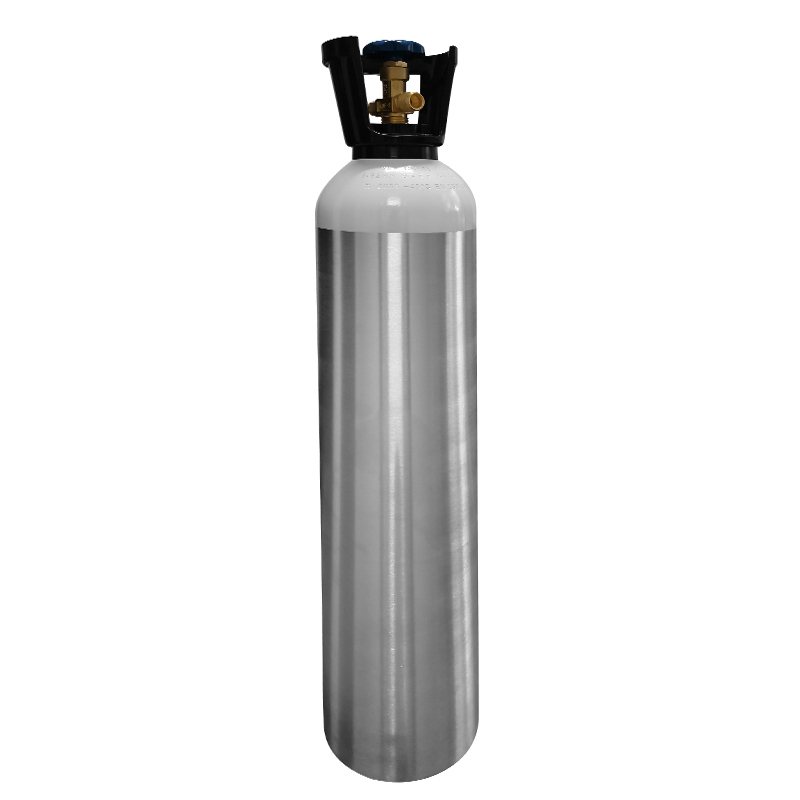

Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 159-5.0-250 | 159 | 166.7 | 250 | AA6061 | H | 8.62 | 5.0 | 415 | 6.2 | TPED |
| 159-6.0-250 | 6.0 | 480 | 6.9 | |||||||
| 159-7.0-250 | 7.0 | 545 | 7.6 | |||||||
| 159-7.5-250 | 7.5 | 580 | 8.0 | |||||||
| 159-8.0-250 | 8.0 | 615 | 8.5 | |||||||
| 159-10.0-250 | 10.0 | 745 | 10.0 |
Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
