ISO7866
AA6061
203mm
8L-15L
166.7bar
250bar
H
TPED
| Quantity: | |
|---|---|
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 203-8.0-250 | 203 | 166.7 | 250 | AA6061 | H | 11.0 | 8.0 | 420 | 10.5 | TPED |
| 203-10.0-250 | 10.0 | 500 | 11.9 | |||||||
| 203-12.0-250 | 12.0 | 580 | 13.4 | |||||||
| 203-13.4-250 | 13.4 | 635 | 14.3 | |||||||
| 203-15.0-250 | 15.0 | 700 | 15.5 | |||||||
| 203-20.0-250 | 20.0 | 905 | 19.5 |

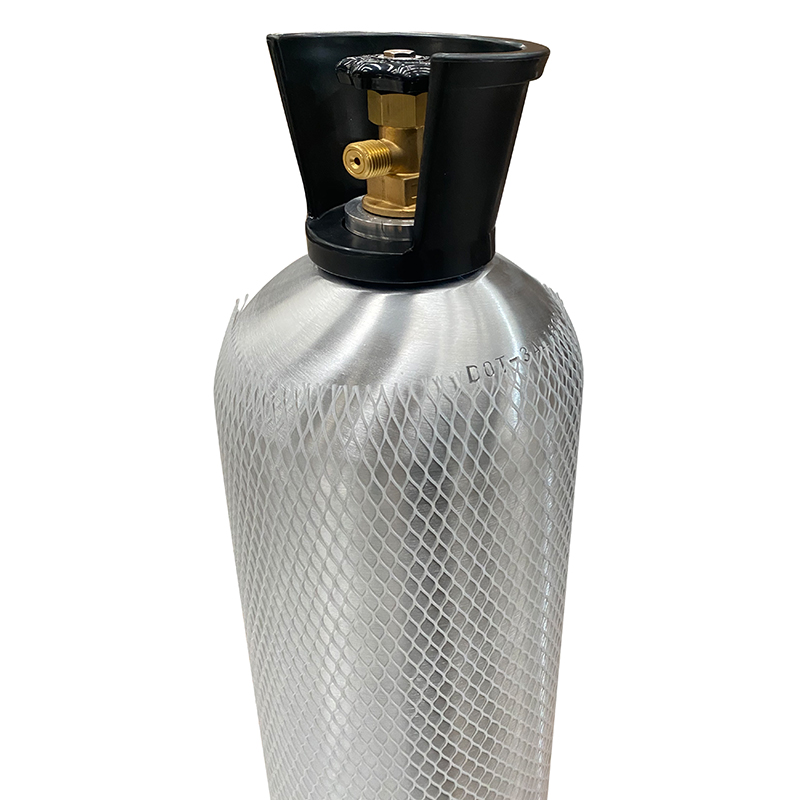

Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 203-8.0-250 | 203 | 166.7 | 250 | AA6061 | H | 11.0 | 8.0 | 420 | 10.5 | TPED |
| 203-10.0-250 | 10.0 | 500 | 11.9 | |||||||
| 203-12.0-250 | 12.0 | 580 | 13.4 | |||||||
| 203-13.4-250 | 13.4 | 635 | 14.3 | |||||||
| 203-15.0-250 | 15.0 | 700 | 15.5 | |||||||
| 203-20.0-250 | 20.0 | 905 | 19.5 |
Aluminum high pressure vessels are approved according to ISO7866 standard and get TPED certificate.
