ISO9809-3
Q345B
35mm
0.06L-0.2L
193.3bar
290bar
convex
TPED
| Quantity: | |
|---|---|
| ISO 9809-3 | ||||||||||

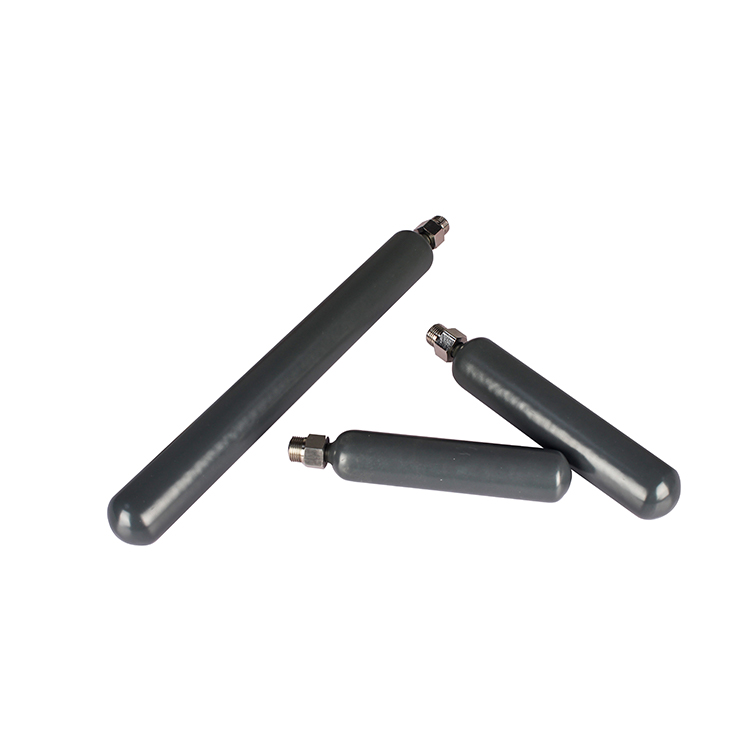

| ISO 9809-3 Seamless Steel Gas Cylinder | ||||||||||
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(ml) | Height (mm) | CO2 filling Weight (g) | Certificate |
| 35-0.060-290 | 35 | 193.3 | 290 | Q345B | Convex | 1.53 | 60 | 115 | 36 | TPED |
| 35-0.075-290 | 75 | 135 | 54 | |||||||
| 35-0.100-290 | 100 | 165 | 75 | |||||||
| 35-0.120-290 | 120 | 190 | 90 | |||||||
| 35-0.200-290 | 200 | 300 | 150 | |||||||
Gas cartridge cylinder is approved according to ISO9809-3 standard, get the TPED certificate.
| ISO 9809-3 | ||||||||||
| ISO 9809-3 Seamless Steel Gas Cylinder | ||||||||||
| Type | Outside diameter(mm) | Working pressure (Bar) | Test pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(ml) | Height (mm) | CO2 filling Weight (g) | Certificate |
| 35-0.060-290 | 35 | 193.3 | 290 | Q345B | Convex | 1.53 | 60 | 115 | 36 | TPED |
| 35-0.075-290 | 75 | 135 | 54 | |||||||
| 35-0.100-290 | 100 | 165 | 75 | |||||||
| 35-0.120-290 | 120 | 190 | 90 | |||||||
| 35-0.200-290 | 200 | 300 | 150 | |||||||
Gas cartridge cylinder is approved according to ISO9809-3 standard, get the TPED certificate.
