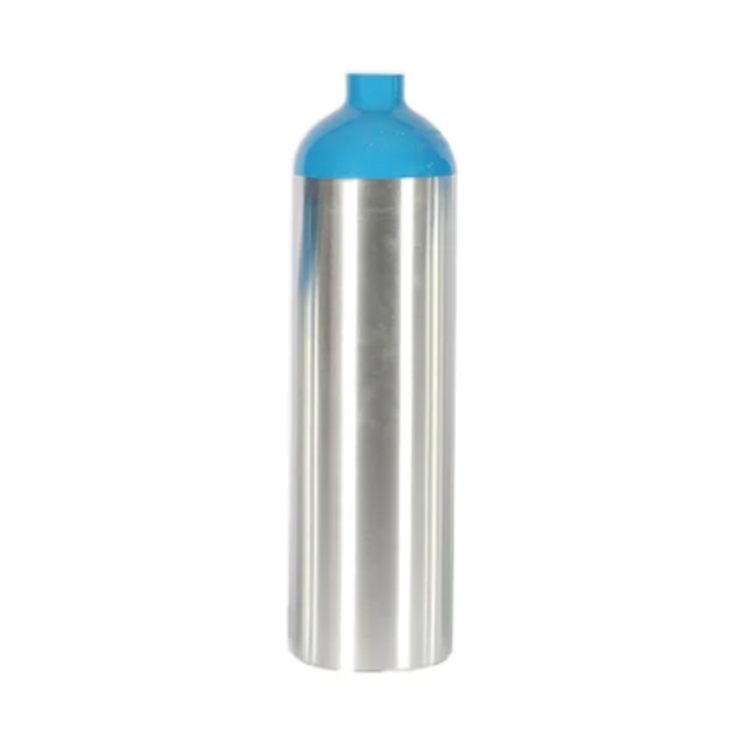

DOT Φ175mm 4.5-7.5L ALUMINUM CYLINDER

Aluminum high pressure vessels are widely used for storage and transportation of industral gas, oxygen,CO2 etc,with high safety and refillability. weight is light, not easy to rust, the service life is longer

Standard:
DOT-3AL
Material:
AA6061
Outside diameter:
175mm
Water Capacity:
4.5L-7.5L
Work pressure:
2216PSI
Bottom Type:
H

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	Diameter(mm)	Service pressure (PSI/BAR)		Water capacity(L)	Length(mm)	thinkness(mm)	Cylinder weight(kg)	Thread
	175	2216	152.8	4.5	330	8.85	5.5	customization
	175	2216	152.8	4.7	340	8.85	5.7	customization
	175	2216	152.8	5	360	8.85	5.9	customization
	175	2216	152.8	5.5	385	8.85	6.2	customization
N33/M33	175	2216	152.8	5.8	400	8.85	6.4	customization
	175	2216	152.8	5.9	405	8.85	6.5	customization
	175	2216	152.8	6	410	8.85	6.6	customization
	175	2216	152.8	6.2	420	8.85	6.7	customization
	175	2216	152.8	6.5	435	8.85	6.9	customization
	175	2216	152.8	6.7	450	8.85	7	customization
	175	2216	152.8	7	465	8.85	7.3	customization
	175	2216	152.8	7.5	490	8.85	7.6	customization

Aluminum high pressure vessels are approved according to DOT-3AL standard and get DOT certificate.
